Micro Filtration
GES KO is an advanced technology company specializing in the development and application of membrane technology. Our core technology includes membrane separation technologies, such as membrane bio-reactors (MBR), ultrafiltration (UF), and microfiltration (MF). The company boasts a professional research and development team dedicated to continuously innovating and improving membrane materials and structures to meet the needs of customers in different fields.
Micro Technical Specifications

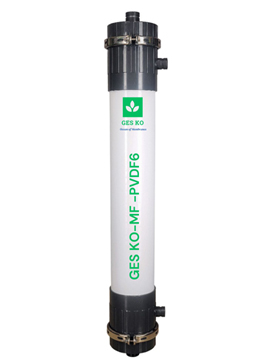

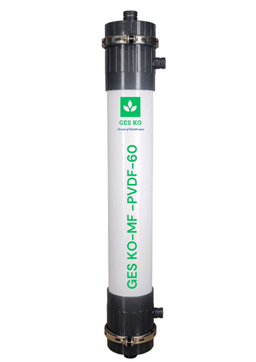

| Model No | GES KO-PVDF6 |
|---|---|
| Surface Area (m2) | 60 |
| MOC | PVDF |
| Fiber OD/ID (mm) | 1.8/1.3 |
| Pore Size (micron ) | 0.1 |
| Tensile Strength (N) | 9 - 11 |
| Mode | Out - to - in |
| MWCO (Daltons) | 0.1 |
| End caps & Pipe | uPVC |
| End caps Port | Permeate 2'’, Feed and Reject 1.5'’ Victaulic coupling |
| Module Dimensions (mm) | D 200 X H 2350 |
| Operation flux (LMH) | 40 - 160 |
| Flow/Module (m3/hr) | 3 - 3.5 |
| Operating pressure (bar) | 0.5 - 2.5 |
| Back wash | 1.5 Times higher then filtration |
| Operating Temp(0c) | 20 - 40 0c |
| TMP (bar) | 1.5 |
Micro filtration (MF)
