Ultra Filtration
GES KO is an advanced technology company specializing in the development and application of membrane technology. Our core technology includes membrane separation technologies, such as membrane bio-reactors (MBR), ultrafiltration (UF), and microfiltration (MF). The company boasts a professional research and development team dedicated to continuously innovating and improving membrane materials and structures to meet the needs of customers in different fields.

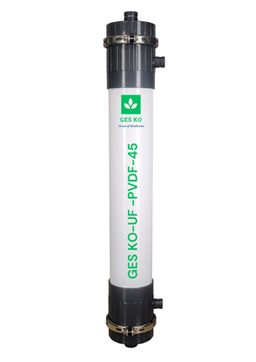

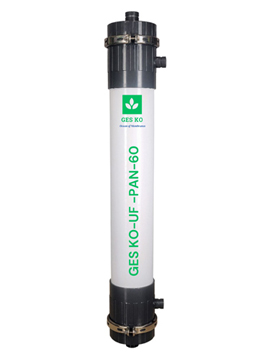

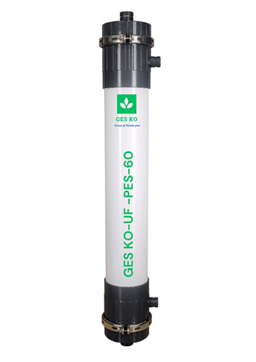

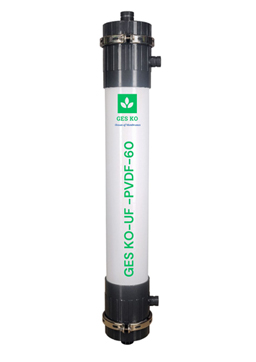

UF Technical Specifications
| Parameters | UF | MF | ||||
|---|---|---|---|---|---|---|
| Model No | GES KO-PES6 | GES KO-PVDF4 | GES KO-PVDF6 | GES KO-PAN6 | GES KO-PVDF6 | |
| Surface Area (m2) | 60 | 45 | 60 | 60 | 60 | |
| MOC | PES | PVDF | PVDF | PAN | PVDF | |
| Fiber OD/ID (mm) | 1.7/1.3 | 1.9/1.4 | 1.8/1.3 | |||
| Pore Size (micron ) | 0.03 | 0.1 | ||||
| Tensile Strength (N) | 9-11 | 11-14 | 9 - 11 | |||
| Mode | Out - to - in | |||||
| MWCO (Daltons) | 100 KDA | 0.1 | ||||
| End caps & Pipe | uPVC | |||||
| End caps Port | Permeate 2'’, Feed and Reject 1.5'’ Victaulic coupling | |||||
| Module Dimensions (mm) | D 200 X H 2350 | D 200 X H 1700 | D 200 X H 2350 | D 200 X H 2350 | D 200 X H 2350 | |
| Operation flux(LMH) | 40 - 120 | 40 - 160 | 40 - 120 | 40 - 160 | ||
| Flow/Module (m3/hr) | 2.4 - 3.6 | 2 - 2.7 | 2.4 - 3.6 | 2.4-3 | 3-3.5 | |
| Operating pressure (bar) | 0.5 - 2.5 | |||||
| Back wash | 1.5 Times higher then filtration | |||||
| Operating Temp(0c) | 20 - 40 0c | |||||
| TMP (bar) | 1.5 | |||||
